Подробная информация о продукции

Created with Pixso. Домой Created with Pixso. продукты Created with Pixso.
Полностью автоматическая машина слоения
Created with Pixso.

Fully Automatic Gypsum Board Lamination Machine with 100KW Power and Smooth Performance for PVC Film Lamination

Fully Automatic Gypsum Board Lamination Machine with 100KW Power and Smooth Performance for PVC Film Lamination

Наименование марки: Greens
Номер модели: FM1300
МОК: 1 линия
цена: US $20000-200000
Условия оплаты: Л/К, Т/Т
Способность к поставкам: 10 строк в год
Подробная информация
Место происхождения:
Хэбэй, Китай (материк
Сертификация:
CE ISO
Название продукта:
Оборудование для изготовления строительных материалов, машина для ламинирования гипсокартона, машина
Ключевое слово:
ламинированный гипсокартон пвх
Тип:
Полностью автоматический
Преимущества:
Высокая эффективность
Особенности машины:
Высокоскоростной
Власть:
100 кВт
Производственная мощность:
2-6 миллионов кв
Послепродажное обслуживание:
Инженеры доступны для обслуживания за рубежом
Упаковывая детали:
Стандартный пакет
Поставка способности:
10 строк в год
Выделить:

100KW Power Gypsum Board Lamination Machine

,

Smooth Performance Plasterboard Laminating Machine

,

Engineers available to service overseas PVC Film Lamination Machine

Описание продукта
PVC Film Gypsum Board Lamination Machine
This fully automatic plasterboard laminating machine efficiently bonds decorative films to gypsum boards with high-speed performance and precision.
Key Specifications
Attribute Value
Condition New
Performance Smooth operation
Type Fully-automatic
Advantages High Efficiency
Features High Speed Processing
Power 100KW
Production Capacity 2-6 million sqm
After-sales Service Overseas engineer support

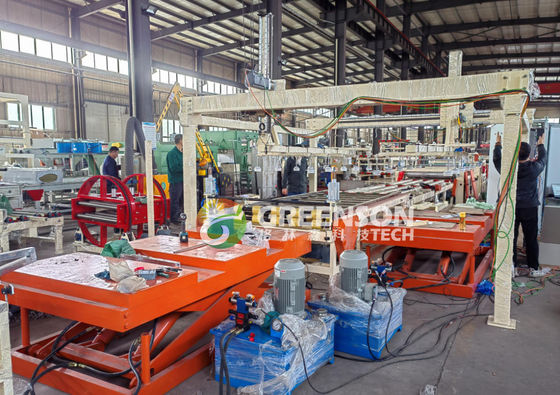

Operation Process
The laminating process begins by placing boards on rollers. After dust collection, glue is applied and quality-checked on guide rollers. The film is then combined with the board through a recombination mechanism, completing the process via press rollers, pinch rollers, and forming rollers.

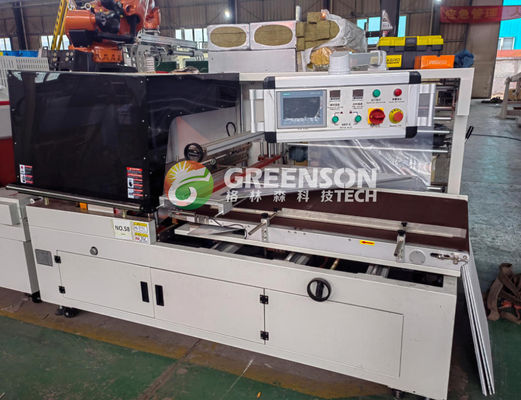

Automatic Packaging System
Our integrated packaging machine uses advanced shrink-wrap technology to protect finished gypsum boards with moisture-resistant film coverings.
Packaging speed 20m/minutes Weight 500KG
Packaging size L1200*W700*H300mm Power 18.75KW
Voltage 380V,50-60Hz Maximum current 30A
Company Overview
Established: 2006 | Location: Hebei, China
Employees: 201-300 | Markets: Domestic (35%), Mid East (25%), South America (10%), Eastern Europe (10%), Africa (10%), Southeast Asia (10%)
Quality Assurance
  • Pre-production samples for approval
  • Final inspection before shipment
Product Range
Gypsum board lamination machines, Mineral fiber ceiling board production lines, XPS Extruded board production lines, Fiber cement board production lines, Magnesium oxide board machines, Calcium Silicate Board Making Machines.
Competitive Advantages
Dedicated R&D center, manufacturing base, and international trade operations. Our products are exported worldwide with support from 6 professor-level senior engineers among our 300 employees.
Service Options
  • Delivery Terms: FOB, CFR, CIF, EXW
  • Payment Methods: T/T, L/C, Credit Card, Western Union, Cash
  • Currencies: USD, EUR, CNY
  • Languages: English, Chinese, Spanish
