производственная линия плитки потолка гипса

Automatic 55kw 380V Gypsum Ceiling Tile Production Line for PVC Laminated Gypsum Board

Automatic 55kw 380V Gypsum Ceiling Tile Production Line for PVC Laminated Gypsum Board

Наименование марки:	Greens
Номер модели:	ЛВ--1300SFM(02.01.03)
МОК:	1 линия
цена:	US $20000-200000
Способность к поставкам:	10 строк в год

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Хэбэй, Китай (материк)

Сертификация:

ISO CE,

Название продукта:

Машина для производства строительных материалов, гипсокартон с виниловой облицовкой из ПВХ, водонепр

Ключевое слово:

Машина для изготовления гипсокартонных потолков из ПВХ 60x60

Мощность (Вт):

55 кВт

Ежегодная емкость:

2-6 миллионов кв.м.

Цвет:

Индивидуально

Приложение:

Кино, машиностроение

Сырье:

пленка ПВХ, гипсокартон, пленка для домашних животных

Автоматическая оценка:

Автоматический

Использование:

ламинат из гипсокартона

Напряжение:

380В

Упаковывая детали:

Стандартный пакет

Поставка способности:

10 строк в год

Выделить:

55kw Gypsum Ceiling Tile Production Line

380V PVC Laminated Gypsum Board Machine

Automatic Gypsum Board Lamination Machine

Описание продукта

PVC Vinyl Faced Gypsum Board Waterproof False Ceiling Tiles Machine

Advanced building materials production machine for manufacturing waterproof false ceiling tiles with PVC vinyl facing.

Product Specifications

Attribute	Value
Power	55kw
Annual Capacity	2-8 million sqm
Color	Customized
Application	Film, machinery production
Plastic Processed	PVC
Raw Material	PVC film, gypsum board, PET film
Automatic Grade	Automatic
Usage	Laminate gypsum board
Voltage	380V
Weight	Based on models

Product Overview

This advanced gypsum board automatic cutting machine features the latest double-sided coating and laminating technology, enabling simultaneous coating and gluing of both front (PVC) and reverse sides (aluminum foils) without requiring turn-over.

Key Features

Capacity: 7000-12000m² per day (based on standard board dimensions)
Automation: Simple operation with high degree of automation
Material Compatibility: Works with gypsum board, PVC film, aluminum foil, and specialized adhesives
Product Dimensions: Multiple standard sizes available (595×595mm to 1200×600mm)
Thickness Range: 7.0mm to 9.0mm

Technical Parameters

Model	LV-1300SFM01	LV-1300SFM02	LV-1300SFM03
Max. Laminating Width	1300mm
Thickness Range	5-30mm
Max. Laminating Speed	15m/min
Speed Regulation	Frequency conversion synchronous speed regulating
Installed Power	8kw	10kw	20kw

System Components

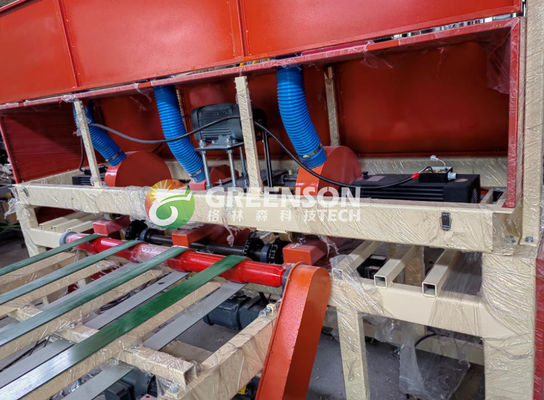

1. Gypsum Ceiling Board Lamination Machine

Specialized equipment for laminating film on gypsum board with 1220mm laminating width.

Standard gypsum board size: 1220×2440mm
Specialized adhesives for PVC film and aluminum foil
Max sheet speed: 2-15m/min
Thickness range: 2-50mm
Motor power: 4.5kw

2. Automatic Feeding Machine

Available in two types for different application needs.

Push-type with cylinder operation (700mm max range)
Suction-type for alternative applications
Features photoelectric control and rubber roller transmission
Cost-effective solution with fully automatic operation

3. Automatic Cutting Machine

Precision cutting system for laminated gypsum boards to standard sizes.

Features dual cutting system with pulsed sack-duster option

4. Automatic Sealing Machine

Right-angle type gypsum board sealing equipment.

PLC photoelectric automatic control
High-speed operation with tight, firm edging
Quick setup and minimal equipment investment

5. Automatic Shrinking Machine

Heat shrinking system for final packaging.

Infrared ray heating technology
Packaging speed: 20m/min
Weight: 500KG
Power: 18.75KW

6. Electrostatic Pulse Bag Style Dust Collector

Efficient dust collection system for clean operation.

Large dust exhaust fan and pipe system
Complete system includes collector frame, motor, pipes, and pulse controller
Effective dust removal for clean operation
