производственная линия доски минеральных шерстей
Created with Pixso.

Automatic High Density Rock Wool Production Line with Adjustable Felt Size for Mineral Wool Board

Automatic High Density Rock Wool Production Line with Adjustable Felt Size for Mineral Wool Board

Наименование марки: Greens
Номер модели: линия производства каменной шерсти
МОК: 1
цена: US $2000000-4000000
Условия оплаты: Л/К, Т/Т
Подробная информация
Место происхождения:
Китай
Название продукта:
Линия по производству огнестойких стеновых материалов высокой плотности с изолированными панелями дл
Ключевое слово:
Линия по производству каменной базальтовой ваты
Напряжение:
380 В или настраивается
Состояние:
Новый
Автоматическая оценка:
Автоматический
Требования к полезности:
Природный газ\Вода\Электричество
Размер войлока:
1000 мм (регулируемый)
Скорости линий:
2-40 м/мин
Выделить:

Automatic Rock Wool Production Line

,

High Density Mineral Wool Board Production Line

,

Adjustable Felt Size Rockwool Panel Production Line

Описание продукта
High Density Fireproof Wall Materials Insulated Panels Exterior Wall Rock Wool Production Line
Complete automated production line for manufacturing high-density fireproof rock wool panels used in exterior wall insulation systems.
Product Specifications
Attribute Value
Product Name China Manufacturers Direct Sales Of Rock Wool Production Line Production Machinery
Keyword rock basalt mineral wool production line
Voltage 380v Or Customized
Condition New
Automatic Grade Automatic
Utility Requirements Natural Gas, Water, Electricity
Felt Size 1000mm (adjustable)
Line Speeds 2-40 m/min
Panel Thickness 30-200mm
Panel Density 30-200 Kg/m³
Applicable Industries Manufacturing Plant, Retail, Construction Works
Finished Products Rock Wool Board
Usage Building Material Production
Production Process Overview
Our rock wool production line utilizes an electric furnace to melt raw materials including basalt, blast furnace hard slag, and dolomite. The process begins with dried materials being stored in silos, then automatically weighed and fed into the furnace through a precise charging system.

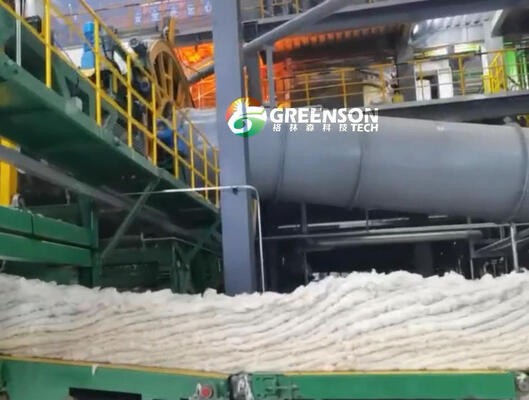

The molten material flows through a guided channel into a high-speed four-roller centrifuge, where it undergoes fibrillation under combined centrifugal force and high-speed airflow. The resulting fibers are collected on a conveyor belt to form primary felt, which is then processed through our advanced pendulum machine.
Finishing Process
Before entering the curing furnace, the secondary felt undergoes compression via our pleating and pressurizing machines to enhance strength. The complete finishing process includes:
  • Curing in specialized furnace
  • Cooling system

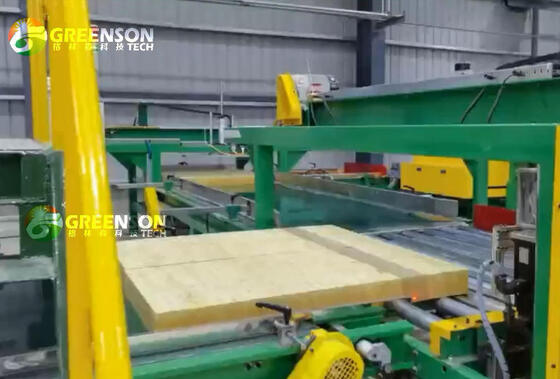

  • Precision longitudinal cutting
  • Online cutting system
  • Edge trimming
  • Thickness sawing
  • Cross-cutting
  • Guillotine finishing
