Подробная информация о продукции

Домой продукты

производственная линия доски минеральных шерстей

Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line for Sandwich Panel Making

Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line for Sandwich Panel Making

Наименование марки:	Greenson
МОК:	1
цена:	$700000-$800000
Условия оплаты:	Л/К, Т/Т

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Хэбэй

Название продукта:

Автоматическая непрерывная производственная линия по производству листа полиуретана PIR для крыши и

Ключевое слово:

Изоляционная полностью автоматизированная машина для производства сэндвич-панелей из полиуретана на

Приложение:

Здание

Цвет:

Требование клиента

OEM:

Да

Особенность:

Полностью автоматический

Упаковывая детали:

Пластиковая пленка

Порт отправки:

Тяньцзинь

Гарантия:

1 год

Место происхождения:

Хэбэй, Китай

Описание продукта

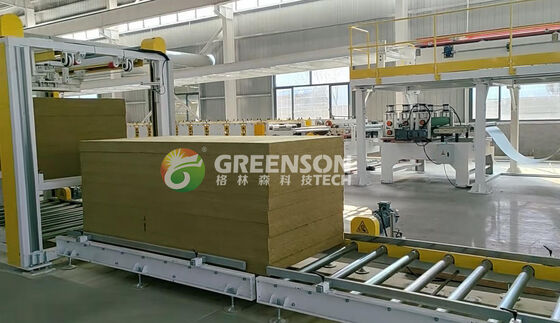

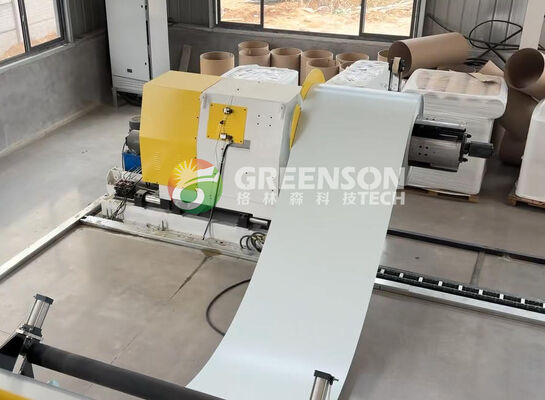

Automatic Continuous PIR Polyurethane Sheet Making Production Line For Roof And Wall

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Fully Automatic: Effortlessly produces high-quality sandwich panels
High Capacity: Handles large-scale production with efficiency
Variable Speed: Adjusts to match production needs for optimal output
Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
Guaranteed Quality: Equipped with video factory inspection and mechanical test reports

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
