200T Pressure High Automatic Punch Press for Max 20mm Thickness Gypsum Board Perforation Machine

200T Pressure High Automatic Punch Press for Max 20mm Thickness Gypsum Board Perforation Machine

Наименование марки: LVJOE
Номер модели: LV-CK01
МОК: 1 комплект
цена: US $20000-80000
Условия оплаты: Т/Т, Л/К
Способность к поставкам: 50 комплектов в год
Подробная информация
Место происхождения:
Китай
Сертификация:
ISO CE
Название продукта:
Коммерческий инженерный пробойный пресс, используемый для штамповочного станка с автоматическим меха
ключевое слово:
Станок для сверления отверстий в плитах МДФ
Давление:
80T, 160T, 200T
Использование:
Гипсокартон, МДФ, HPL, Перфорация фиброцементной плиты
Дыры:
Круглый, квадратный
Автоматический уровень:
Высокое автоматическое
Толщина:
Максимум 20 мм
Гарантия:
1 год
Основные компоненты:
Блокировка тревоги
Отчет об испытаниях оборудования:
Предоставил
Упаковывая детали:
Фильм финишировал
Поставка способности:
50 комплектов в год
Описание продукта
Commercial Engineering Punch Press
CNC Automatic Mechanical Motor Punching Machine For Gypsum Board
Product Overview
High-performance gypsum board drilling equipment designed for precision perforation in various building materials.
Product Specifications
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic Level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications

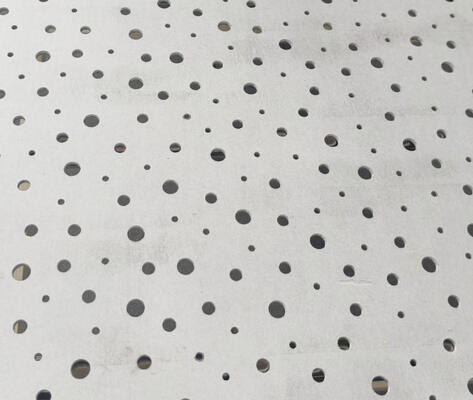

This perforation machine is designed for creating holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.
Commercial Engineering Punch Press Machine for Gypsum Board
